DS-980REV mini pro OTDR Reflectometer 9 functions in 1 device OPM OLS VFL Event Map RJ45 Ethernet Cable Sequence Distance Tracker.

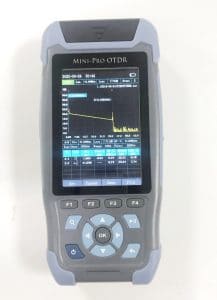

As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent. DS-980REV OTDR handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.
9 Functions in 1 device
1) OTDR
2) EVENT MAP
3) Optical Light Source
4) Optical Power Meter (Wavelength: 850/1300/1310/1490/1550/1625nm)
5) Visual Fault Locator
6) RJ45 Ethernet Cable Sequence
7) Ethernet Cable Distance
8) Ethernet Cable Tracker
9) LED Light
Download Printed/PDF Testing Report
Specification General
| Model | DS-980REV |
| Display | Colorful Screen, 3.5 inch |
| Interface | 1xUSB, 1xOTDR, 1xVFL, 1xOPM, 1xCharging Port
1xRJ45 Port |
| Power Supply | 100V(ac) to 240V(ac), 50~60Hz |
| Battery | 4000mAH Lithium battery
Operating Time: 12hours, Telcordia GR-196-CORE |
| Power Saving | Back light: 0% to 100%, Auto off: 10 to 60mins |
| Data Storage | Internal memory: 500 curves, TF card supported |
| Language | English in default |
| Operating temperature | -10℃~+50℃, ≤95% (non-condensation) |
| Storage Temperature | -20℃~+75℃, ≤95% (non-condensation) |
OTDR TestIing parameter
| Model | DS-980REV |
| Pulse Width | 3ns to 10us |
| Distance Range | 3m to 64km |
| Dynamic Range | 24/22dB |
| Sampling Resolution | Minimum 16cm |
| Sampling Point | Maximum 65K |
| Linearity | ≤0.05dB/dB |
| Averaging Time | 5s, 15s, 30s, 60s, 120s, 180s |
| Distance Accuracy | ±(1m+measuring distance×3×10^-5+sampling resolution ) ( excluding IOR uncertainty) |
| IOR Setting | 1.0000~2.0000 |
| Unit | km |
| OTDR Trace Format | Telcordia universal, SOR, issue 2(SR-4731) |
| Event/Atten.Dead Zone | 3/8m |
Model: DS-980REV Wavelength: 1310 and 1550nm
Dynamic Range: 24/22dB Testing Range: 3m to 64km
